Produktnummer: 23041033
Huber Suhner

Water penetr Standard IEC 60794-1-2 F5B
Outer Jacket Width 9.4mm
Stripping Ripcord for easy jacked removal
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Rodent-protected, glass-armoured
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Layer Type 2 Ripcords
Temperature Standard IEC 60794-1-22 F1
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Circuit IEC 60331
Other Properties Longitudinal and transversal watertight cable
Trademark LSFH
Class 1032

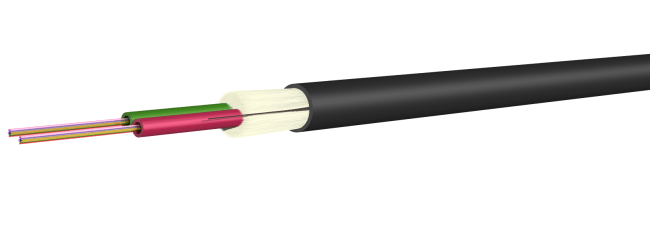

Cable Type Metal free indoor and outdoor cable
Cable Description Twintube
Outer Jacket Type Outer jacket / PE flame retardant (LSFH)
Outer Jacket Ø 8.8mm
Reinforcement Type Reinforcement / glass-roving
Number of max. Fibres 48
Tube Type Multi-fiber loose tube, up to 24 fibers each
Fire behavior Low smoke, halogen free and self-extinguishing
ID 24-.../W(ZNG)H-...94
OBJECT_ID 6949785
