23 SMA-50-0-51/199NE
| Flange Type | square flange |
| Terminal Dimension D1 | 1.28 mm |
| Terminal Dimension L1 | 5 mm |
| Tab Style | solder end |
| Flange Dimension | 12.7 X 12.7 |
| Weight | 0.0025 kg |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Stainless Steel |
| Centre Contact | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |

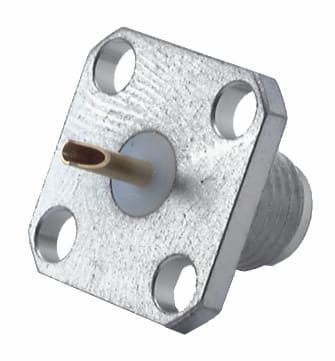

| Connector Description | Straight panel receptacle jack, flange mount |
| CONNECTOR SERIES | SMA |
| Gender | jack |
| ID | 23_SMA-50-0-51/199_N |
| Impedance | 50 |
| Insulator | PFA / PTFE |
| Interface Frequency max. | 18 GHz |
| Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | panel |
| Number of Matings | 500 |
| Operating Temperature max. | 125 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact | Stainless Steel |
| Packaging | Single |
| PATTERN CLASSES | 23 |
| CONNECTOR SHAPE | straight |
| Type Number | 23_SMA-50-0-51/199_NE |
| OBJECT_ID | 4864185 |
