23 SMA-50-0-21/111NE

Produktnummer: 22640101
Huber Suhner
Lagerbeholdning:

Coaxial connector

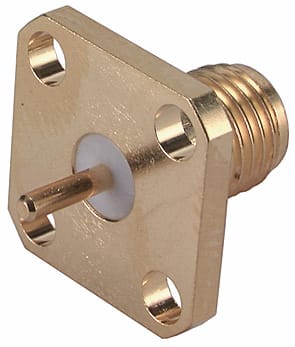

|SMA,50 Ohm,Straight panel receptacle,female,flange mount

Flange Type square flange
Terminal Dimension D1 1.28mm
Terminal Dimension L1 5mm
Tab Style standard
Flange Dimension 12.7 X 12.7
Weight 0.0026kg
2002/96/EC (WEEE) no special marking needed
Class 1182
2006/1907/EC (REACH) compliant
Body Copper Beryllium Alloy
Body Plating Gold Plating (Nickel underplated)
Centre Contact Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight panel receptacle jack, flange mount
CONNECTOR SERIES SMA
Gender jack
ID 23_SMA-50-0-21/111_N
Impedance 50
Insulator PFA / PTFE
Interface Frequency max. 18GHz
Interface Standards IEC 60169-15_MIL-STD-348A/310_CECC 22110
Junction receptacle
2011/65/EC (RoHS) compliant
Mounting panel
Number of Matings 500
Operating Temperature max. 125°C
Operating Temperature min. -65°C
Outer Contact Copper Beryllium Alloy
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Single
PATTERN CLASSES 23
CONNECTOR SHAPE straight
Type Number 23_SMA-50-0-21/111_NE
OBJECT_ID 2413206
