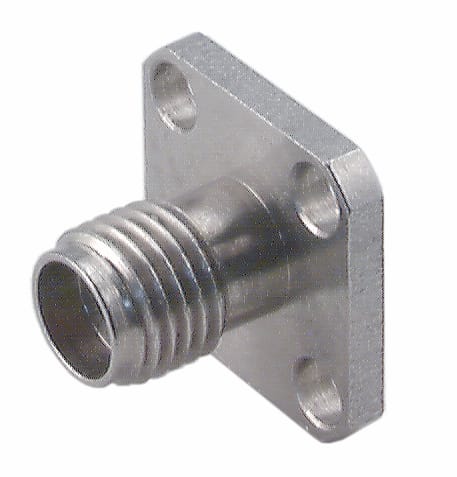

23 SK-50-0-51/199NE
Flange Type | square flange |
Terminal Dimension D2 | 4.17 mm |
Terminal Dimension L2 | 0.12 mm |
Terminal Dimension L1 | 0.12 mm |
Tab Style | socket |
Flange Dimension | 12.7 X 12.7 |
Weight | 0.0029 kg |
External Remarks | Hermetic sealed connector without glass bead supplement 73_Z-0-0-203 (1E-8 Torr l/s or cc/s at 1 atm), system leak rate dependent on customers process execution. For fixing hermetic seal while soldering, tool 74_Z-0-0-227 is recommended. |
2002/96/EC (WEEE) | no special marking needed |
Class | 1182 |
2006/1907/EC (REACH) | compliant |
Body | Stainless Steel |
Centre Contact | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight panel receptacle jack, flange mount |
CONNECTOR SERIES | SK |
Gender | jack |
Highlight1 | Hermetic sealed connector |
ID | 23_SK-50-0-51/199_N |
Impedance | 50 |
Insulator | PPE (Polyphenylene ether, PPO) |
Interface Frequency max. | 40 GHz |
Interface Standards | MIL-STD-348A/323 |
Junction | receptacle |
2011/65/EC (RoHS) | compliant |
Mounting | panel |
Number of Matings | 500 |
Operating Temperature max. | 125 °C |
Operating Temperature min. | -40 °C |
Outer Contact | Stainless Steel |
Packaging | Single |
PATTERN CLASSES | 23 |
CONNECTOR SHAPE | straight |
Type Number | 23_SK-50-0-51/199_NE |
OBJECT_ID | 6027408 |
