23_QN-50-0-1/133_NY

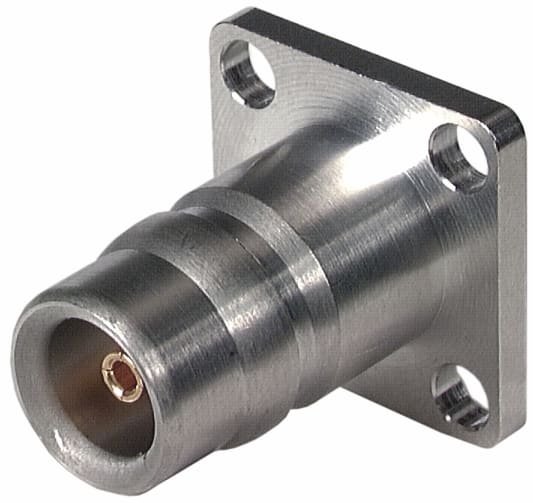

Coaxial connector
|QN,50 Ohm,Straight panel receptacle,female,flange mount
| Flange Type | square flange |
| Terminal Dimension D2 | 0mm |
| Terminal Dimension D1 | 2.1mm |
| Terminal Dimension L2 | 0mm |
| Terminal Dimension L1 | 5mm |
| Tab Style | solder end |
| Flange Dimension | 17.5 X 17.5 |
| Weight | 0.0131kg |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Centre Contact | Bronze |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight panel receptacle jack, flange mount |
| CONNECTOR SERIES | QN |
| Gender | jack |
| Highlight1 | QuickLock Interface |
| ID | 23_QN-50-0-1/133_N |
| Impedance | 50 |
| Insulator | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | QN QLF compliant |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | panel |
| Number of Matings | 100 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -40°C |
| Outer Contact | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Tray |
| PATTERN CLASSES | 23 |
| CONNECTOR SHAPE | straight |
| Type Number | 23_QN-50-0-1/133_NY |
| OBJECT_ID | 1605343 |
