| Flange Type |
square flange |
| Terminal Dimension D2 |
12.1 mm |
| Terminal Dimension D1 |
3 mm |
| Terminal Dimension L2 |
3.5 mm |
| Terminal Dimension L1 |
9.5 mm |
| Tab Style |
solder end |
| Flange Dimension |
25.4 X 25.4 |
| Weight |
0.0301 kg |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1182 |
| 2006/1907/EC (REACH) |
compliant |
| Body |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Centre Contact |
Bronze |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |

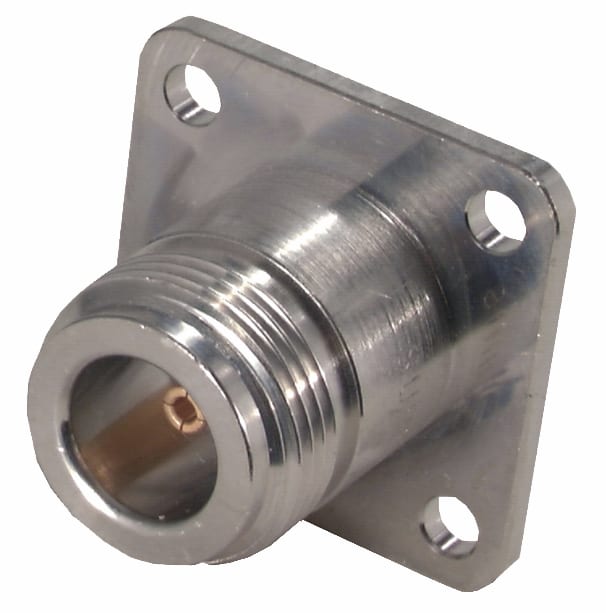

Straight panel receptacle jack, flange mount |
| CONNECTOR SERIES |
N |
| Gender |
jack |
| ID |
23_N-50-0-1/133_N |
| Impedance |
50 |
| Insulator |
PFA / PTFE |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction |
receptacle |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
panel |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
23 |
| CONNECTOR SHAPE |
straight |
| Type Number |
23_N-50-0-1/133_NE |
| OBJECT_ID |
4996565 |
