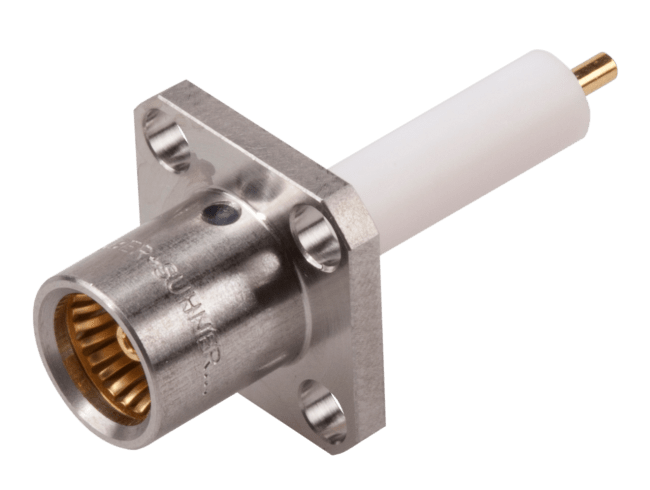

23_BMA-N50-0-16/119_NE
Coaxial connector
|BMA,50 Ohm,Straight panel receptacle,female,flange mount
Flange Type | square flange |
Terminal Dimension D2 | 4.1mm |
Terminal Dimension D1 | 1.27mm |
Terminal Dimension L2 | 15mm |
Terminal Dimension L1 | 17.9mm |
Engangement Force max. | 14N |
Tab Style | standard |
Flange Dimension | 12.7 X 12.7 |
Disengagement Force min. | 2N |
Weight | 0.0036kg |
2002/96/EC (WEEE) | no special marking needed |
Class | 1182 |
2006/1907/EC (REACH) | compliant |
Body | Stainless Steel |
Centre Contact | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight panel receptacle jack, flange mount |
CONNECTOR SERIES | BMA |
Gender | jack |
ID | 23_BMA-N50-0-16/119_N |
Impedance | 50 |
Insulator | PFA / PTFE |
Interface Frequency max. | 18GHz |
Interface Standards | IEC 60169-33_MIL-STD-348/321 fully intermateable |
Junction | receptacle |
2011/65/EC (RoHS) | compliant |
Mounting | panel |
Number of Matings | 1000 |
Operating Temperature max. | 125°C |
Operating Temperature min. | -65°C |
Outer Contact | Copper Beryllium Alloy |
Outer Contact Plating | Gold Plating (without Nickel underplating) |
Packaging | Single |
PATTERN CLASSES | 23 |
CONNECTOR SHAPE | straight |
Type Number | 23_BMA-N50-0-16/119_NE |
OBJECT_ID | 6011172 |
