23_4310-50-0-5/003_-Y

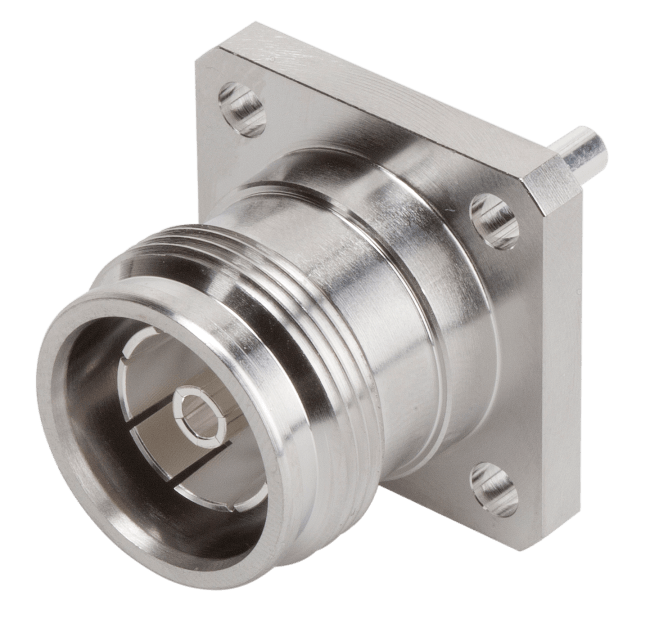

Coaxial connector
4.3-10,50 Ohm,Straight panel receptacle,female,flange
| H+S | |
|---|---|
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium / Brass / Silver Plating |
| Connector type | Straight panel receptacle jack, flange mount |
| Tab style | others |
| Details | CAS: 7439-92-1 Lead |
| Standard | IEC 61169-54 |
| Mating cycles | 100 |
| Product code | 23_4310-50-0-5/003_- |
| Weight | 0.0394 kg |
| Exemptions | 6c |
| Flange type | square flange / 25.4 X 25.4 |
| Interface frequency | 12 GHz |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | 4.3-10 |
| Gender | jack |
| Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
| Operation temperature | -55 °C ... 90 °C |
| Body | Brass / SUCOPLATE (R) Plating |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| Outer conductor | Bronze / Silver Plating |
