22_MMBX-50-0-1/111_NE

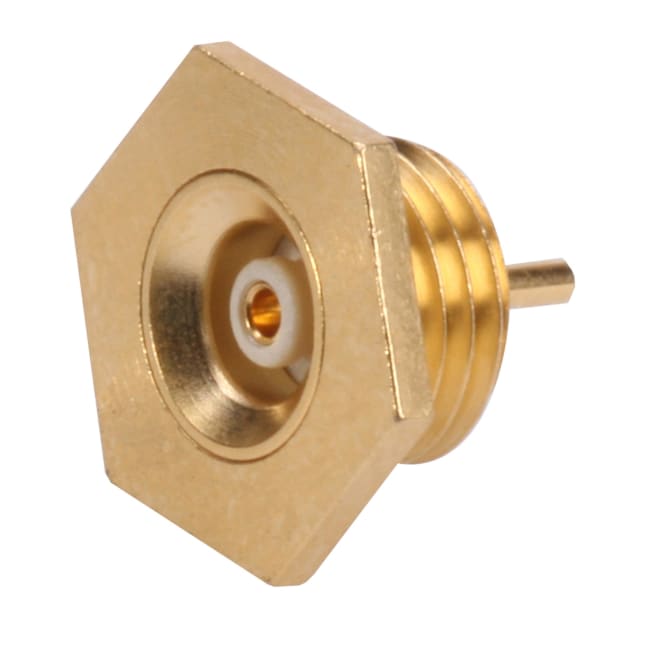

Coaxial connector
|MMBX, 50 Ohm, Straight bulkhead receptacle, female
| Flange Type | hexagonal flange |
| Terminal Dimension D1 | 1mm |
| Terminal Dimension L1 | 1.3mm |
| Engangement Force max. | 15N |
| Tab Style | standard |
| Disengagement Force max. | 15N |
| Chassis Torque | 2Nm |
| Flange Dimension | hex. 10 |
| Product is Lead-Free Soldered | not soldered |
| Weight | 0.0014kg |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Brass |
| Body Plating | SUCOPRO Plating |
| Centre Contact | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead receptacle jack |
| CONNECTOR SERIES | MMBX |
| Gender | jack |
| ID | 22_MMBX-50-0-1/111_N |
| Impedance | 50 |
| Insulator | LCP (Liquid crystal polymer) |
| Interface Frequency max. | 12.4GHz |
| Interface Standards | SUHNER-MMBX |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 100 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact | Brass |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Single |
| PATTERN CLASSES | 22 |
| CONNECTOR SHAPE | straight |
| Type Number | 22_MMBX-50-0-1/111_NE |
| OBJECT_ID | 7423945 |
