| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U7 |
| Cable Retention Force |
125 N |
| Cable1 |
RG_58_C/U |
| Cable2 |
G_03232 |
| Cable3 |
GX_03272 |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
Silver Plating |
| Connector Description |

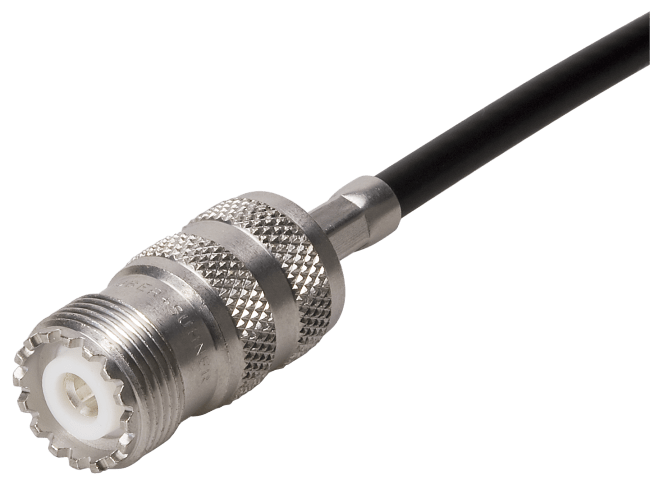

Straight cable jack |
| CONNECTOR SERIES |
UHF |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
3 mm |
| Gender |
jack |
| ID |
21_UHF-0-3-3/033_ |
| Impedance |
other |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
0.2 GHz |
| Interface Standards |
IEC 60169-12 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-55 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
21 |
| Weight |
0.0301 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
21_UHF-0-3-3/033_-E |
| OBJECT_ID |
4325135 |
