| Engangement Force min. |
8 N |
| Engangement Force max. |
63 N |
| Disengagement Force max. |
63 N |
| Disengagement Force min. |
8 N |
| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
Gold Plating (Nickel underplated) |
| Cable Group |
U4 |
| Cable Retention Force |
50 N |
| Cable1 |
K_02252_D |
| Cable2 |
ENVIROFLEX_316_D |
| Cable3 |
G_02232_D |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |

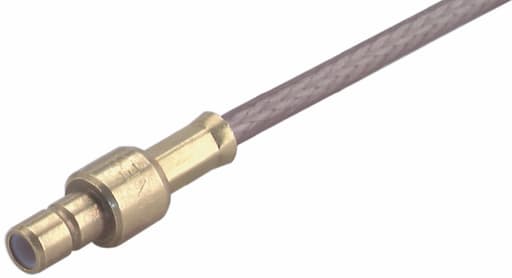

Straight cable jack |
| CONNECTOR SERIES |
SMB |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
Gold Plating (without Nickel underplating) |
| Dielectric Size |
2 mm |
| Gender |
jack |
| Highlight1 |
SUHNER full crimp cable attachement |
| ID |
21_SMB-50-2-11/111_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
4 GHz |
| Interface Standards |
IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
Gold Plating (Nickel underplated) |
| Packaging |
Single |
| PATTERN CLASSES |
21 |
| Weight |
0.0018 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
21_SMB-50-2-11/111_NE |
| OBJECT_ID |
2826072 |
