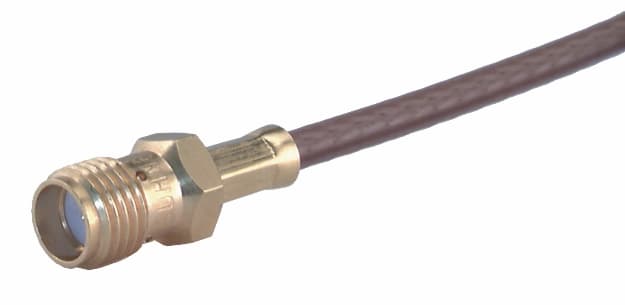

21 SMA-50-2-6/111NE
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Copper Beryllium Alloy |
| Body Plating | Gold Plating (Nickel underplated) |
| Cable Group Connectors | U4 |
| Cable Retention Force | 125 N |
| Cable1 | K_02252_D |
| Cable2 | G_02232_D |
| Cable3 | G_02232_D |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable jack |
| CONNECTOR SERIES | SMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | Gold Plating (without Nickel underplating) |
| Dielectric Size | 2 mm |
| Gender | jack |
| ID | 21_SMA-50-2-6/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18 GHz |
| Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | Gold Plating (Nickel underplated) |
| Packaging | Single |
| PATTERN CLASSES | 21 |
| Weight | 0.0016 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 21_SMA-50-2-6/111_NE |
| OBJECT_ID | 1598033 |
