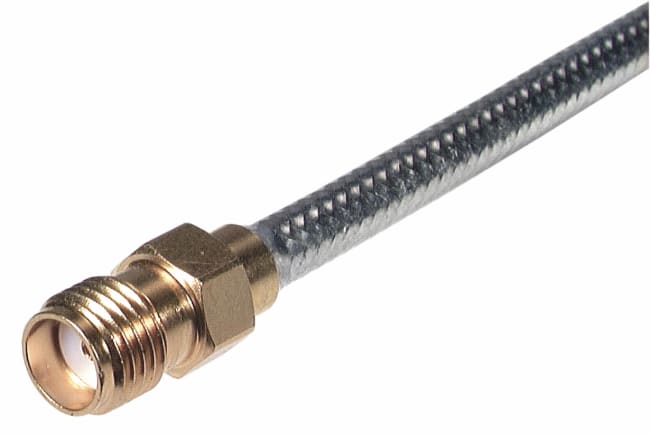

21 SMA-50-1-1/111NE
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Copper Beryllium Alloy |
Body Plating | Gold Plating (Nickel underplated) |
Cable Group Connectors | Y19 |
Cable Retention Force | 125 N |
Cable1 | EZ_34_TP |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable jack |
CONNECTOR SERIES | SMA |
Dielectric Size | 1 mm |
Gender | jack |
ID | 21_SMA-50-1-1/111_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 18 GHz |
Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Outer Contact Material | Copper Beryllium Alloy |
Outer Contact Plating | Gold Plating (Nickel underplated) |
Packaging | Single |
PATTERN CLASSES | 21 |
Weight | 0.0015 kg |
CONNECTOR SHAPE | straight |
Type Number | 21_SMA-50-1-1/111_NE |
OBJECT_ID | 1591879 |
