21_SK-50-2-61/199_NE

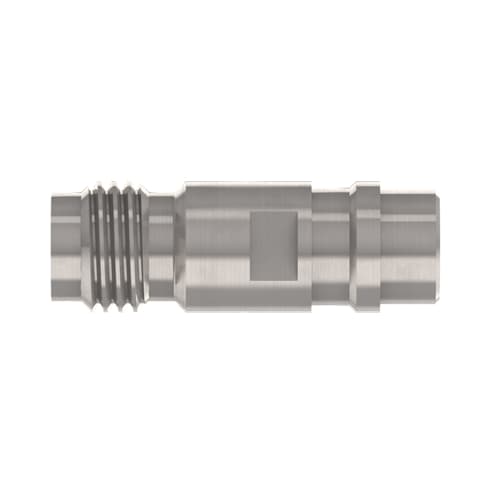

Coaxial connector
SK, 50 Ohm, Straight cable female
H+S | |
---|---|
Interface type | SK |
Operation temperature | -55 °C ... 125 °C |
Suitable cables | MULTIFLEX_86 |
Outer conductor | Stainless Steel / Passivated (Plating) |
Product code | 21_SK-50-2-61/199_N |
Insulator | PPE (Polyphenylene ether, PPO) |
Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
Interface frequency | 40 GHz |
Available as assembly only | No |
Cable group | Y11 , Y11 - 2 mm / 50 Ohm |
Body | Stainless Steel / Passivated (Plating) |
Cable entry centre contact | plugged |
Standard | MIL-STD-348A/323 |
Mating cycles | 500 |
Impedance | 50 Ω |
Weight | 0.00426 kg |
Cable entry outer contact | soldered |
Gender | jack |
