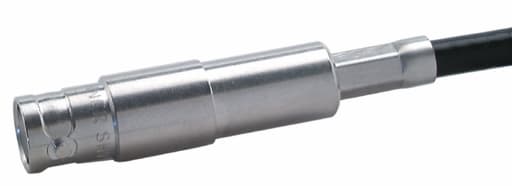

21 SHV 50-4-1/133NE
| External Remarks | null |
| Cable Entry Centre Contact | crimped |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U16 |
| Cable Retention Force | 125 N |
| Cable1 | RG_59_B/U |
| Cable2 | GX_04273 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable jack |
| CONNECTOR SERIES | SHV |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 4 mm |
| Gender | jack |
| Highlight1 | SUHNER full crimp cable attachement |
| ID | 21_SHV-50-4-1/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 0.3 GHz |
| Interface Standards | IEC 60498_MIL-STD-348A/314 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 21 |
| Weight | 0.0183 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 21_SHV-50-4-1/133_NE |
| OBJECT_ID | 6953611 |
