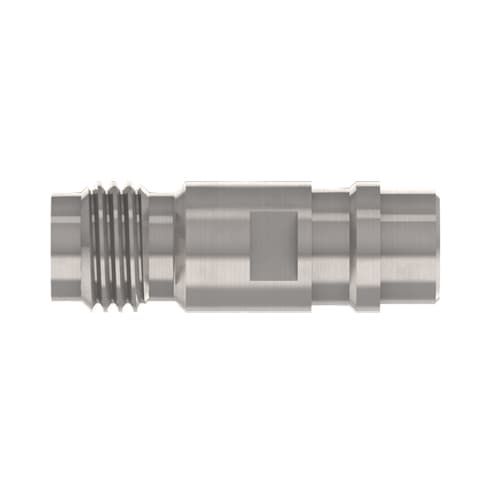

21_PC35-50-3-3/199_UE
Coaxial connector
PC 3.5, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Suitable cables | SUCOFORM_141 |
| Product code | 21_PC35-50-3-3/199_U |
| Insulator | PS (Polystyrene) |
| Centre contact | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| Available as assembly only | No |
| Details | CAS: 7439-92-1 Lead |
| Cable group | Y5Y17Y12 , Y5 - 3 mm / 50 OhmY17 - 3 mm / 50 OhmY12 - 3 mm / 50 Ohm |
| Additional cables | MULTIFLEX_141 |
| Standard | IEC 60169-23 |
| Mating cycles | 500 |
| Weight | 0.00478 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | PC 3.5 |
| Gender | jack |
| Operation temperature | -60 °C ... 100 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Stainless steel |
| Interface frequency | 26.5 GHz |
| Body | Stainless steel |
| Cable entry centre contact | plugged |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
