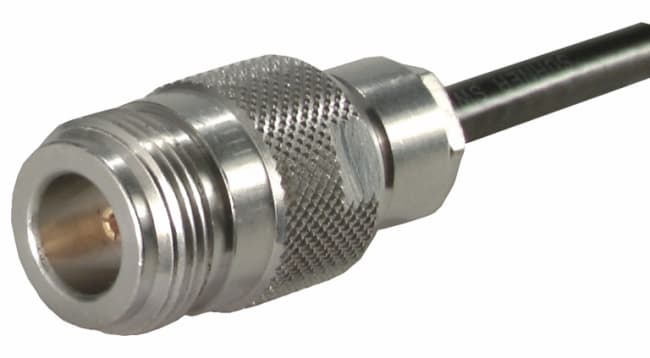

21 N-50-7-8/133NE
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | clamped |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U29 |
Cable Group2 | U32 |
Cable Retention Force | 423 N |
Cable1 | RG_213_/U |
Cable2 | GX_07272 |
Cable3 | RG_214_/U |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable jack |
CONNECTOR SERIES | N |
Dielectric Size | 7 mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
ID | 21_N-50-7-8/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 11 GHz |
Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 21 |
Weight | 0.0495 kg |
CONNECTOR SHAPE | straight |
Type Number | 21_N-50-7-8/133_NE |
OBJECT_ID | 5783170 |
