21 N-50-7-13/133NE (RG 213)

Produktnummer: 22542257
Huber Suhner
Lagerbeholdning:

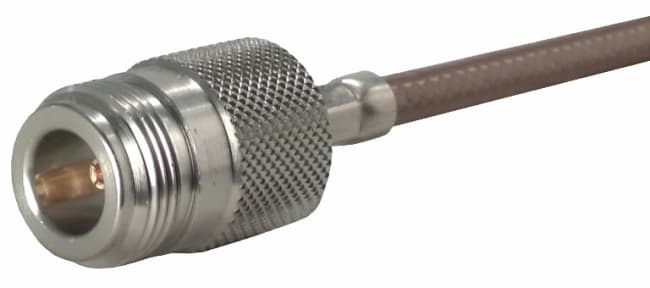

Coaxial connector
|N, 50 Ohm, Straight cable female

Cable6 RADOX_RF_213
Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U29
Cable Group2 U42
Cable Retention Force 423N
Cable1 RG_213_/U
Cable2 GX_07272
Cable3 G_07262
Cable5 G_07272
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight cable jack
CONNECTOR SERIES false
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 7mm
Gender jack
Highlight1 SUHNER full crimp cable attachement
ID 21_N-50-7-13/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11GHz
Interface Standards IEC 61169-16_MIL-STD-348A/304_CECC 22210
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 21
Weight 0.0371kg
CONNECTOR SHAPE straight
Type Number 21_N-50-7-13/133_NE
OBJECT_ID 4837909
