21_N-50-6-7/12-_NE

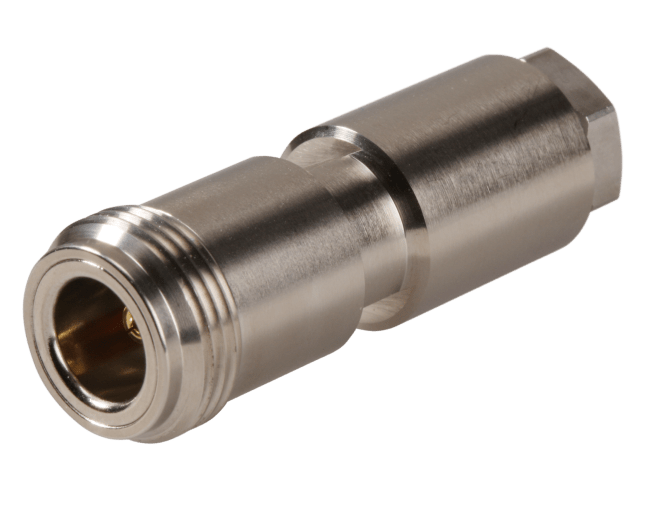

Coaxial connector
N, 50 Ohm, Straight cable female
| H+S | |
|---|---|
| Suitable cables | EACON_6C |
| Product code | 21_N-50-6-7/12-_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Ingress protection (IP Rating) | Mated / IP67 |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | U96 , U96 - EACON_6C |
| Standard | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Other body part | Stainless steel / Passivated (Plating) |
| Mating cycles | 500 |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | clamped |
| Interface type | N |
| Gender | jack |
| Operation temperature | -60 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / Nickel Plating |
| Interface frequency | 18 GHz |
| Body | Brass / Nickel Plating |
| Cable entry centre contact | plugged |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
