Cable4 |
RADOX_RF_316_D |
Cable Entry Centre Contact |
soldered |
Cable Entry Outer Contact |
clamped |
Class |
1037 |
Body Material |
Brass |
Body Plating |
SUCOPLATE (R) Plating |
Cable Group |
U4 |
Cable Retention Force |
125 N |
Cable1 |
K_02252_D |
Cable2 |
G_02232_D |
Cable3 |
ENVIROFLEX_316_D |
Centre Contact Material |
Copper Beryllium Alloy |
Centre Contact Plating |
Gold Plating (Nickel underplated) |

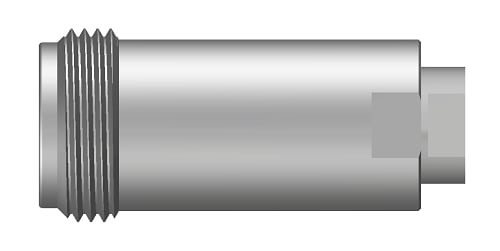

Connector Description |
Straight cable jack |
CONNECTOR SERIES |
N |
Dielectric Size |
2 mm |
Gasket Material |
VMQ (Silicone rubber) |
Gender |
jack |
ID |
21_N-50-2-2/133_N |
Impedance |
50 |
Insulator Material |
PFA / PTFE |
Interface Frequency max. |
11 GHz |
Interface Standards |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
Junction |
cable |
2011/65/EC (RoHS) |
compliant |
Mounting |
none |
Number of Matings |
500 |
Operating Temperature max. |
165 °C |
Operating Temperature min. |
-65 °C |
Outer Contact Material |
Brass |
Outer Contact Plating |
SUCOPLATE (R) Plating |
Packaging |
Single |
PATTERN CLASSES |
21 |
Weight |
0.0391 kg |
CONNECTOR SHAPE |
straight |
Type Number |
21_N-50-2-2/133_NE |
OBJECT_ID |
6155488 |
