21_N-50-0-150/033_-E

Produktnummer: 85082504
Huber Suhner
Lagerbeholdning:

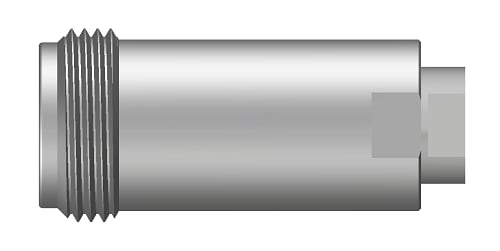

Coaxial connector
N, 50 Ohm, Straight cable female

H+S
Interface type N
Operation temperature -65 °C ... 165 °C
Suitable cables SUCOFORM_122_LA_CU_CMP
Outer conductor Brass / SUCOPLATE (R) Plating
Product code 21_N-50-0-150/033_N
Insulator PTFE (Polytetrafluoroethylene)
Centre contact Copper Beryllium Alloy / Silver Plating
Interface frequency 6 GHz
Ingress protection (IP Rating) Mated / IP67
Available as assembly only No
Cable group Z1Y32 - 222Y31 - 122Y30 - 141 , Z1 - M10x1/SPJ-CPJY32 - 222 - 5mm / 50 OhmY31 - 122 - 3mm / 50 OhmY30 - 141 - 3mm / 50 Ohm
Additional cables SPJ/CPJ assemblies
Body Brass / SUCOPLATE (R) Plating
Cable entry centre contact plugged
Standard IEC 61169-16 / Connector for use with SPJ/CPJ Assembly
Mating cycles 500
Impedance 50 Ω
Weight 0.0328 kg
Cable entry outer contact clamped
Gender jack
