21_MMPX-50-2-1/111_NE

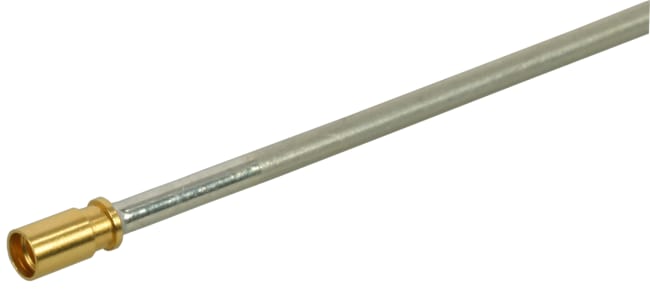

Coaxial connector
|MMPX, 50 Ohm, Straight cable female
| Frequency min. Range3 | 50GHz |
| Frequency min. Range2 | 26.5GHz |
| VSWR Range 3 | 1.22 |
| VSWR Range 2 | 1.22 |
| Engangement Force max. | 30N |
| Disengagement Force max. | 30N |
| Return Loss Range2 | 20dB |
| Return Loss Range3 | 20dB |
| External Remarks | Decoupling tool MMPX shall be used (74_Z-0-0-491/74_Z-0-0-555)! |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 50GHz |
| Frequency max. Range3 | 67GHz |
| Body Plating | SUCOPRO / Gold Plating |
| Cable Group Connectors | Y3 |
| Cable Group2 | Y16 |
| Cable1 | EZ_86_TP_M17 |
| Cable2 | EZ_86_AL_TP_M17 |
| Cable3 | SUCOFORM_86 |
| Cable5 | STORM_SR_86 |
| Centre Contact Material | Copper Beryllium / Brass |
| Centre Contact Plating | SUCOPRO / Gold Plating |
| Connector Description | Straight cable jack |
| CONNECTOR SERIES | MMPX |
| Dielectric Size | 2mm |
| Frequency max. Range1 | 26.5GHz |
| Frequency min. Range1 | 0GHz |
| Gender | jack |
| Highlight1 | Precision connector |
| ID | 21_MMPX-50-2-1/111_N |
| Impedance | 50 |
| Interface Frequency max. | 67GHz |
| Interface Standards | HUBER+SUHNER MMPX STD (Patent US 7.294.023) |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 100 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | SUCOPRO / Gold Plating |
| Packaging | Single |
| PATTERN CLASSES | 21 |
| Return Loss Range1 | 25dB |
| Weight | 0.0003kg |
| CONNECTOR SHAPE | straight |
| Type Number | 21_MMPX-50-2-1/111_NE |
| VSWR Range 1 | 1.12 |
| OBJECT_ID | 7352798 |
