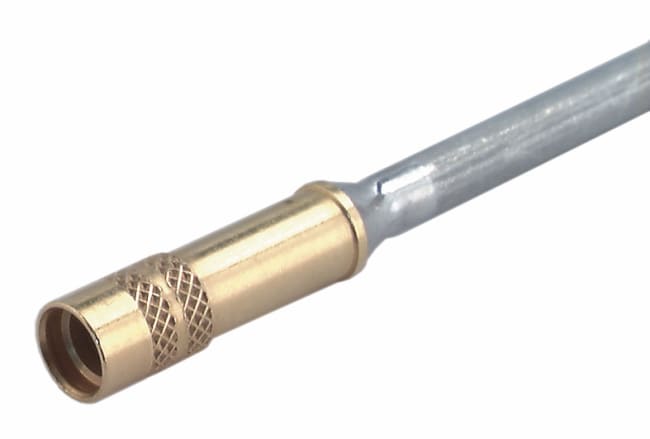

21 MMCX-50-2-1/111OE
Coaxial connector
MMCX, 50 Ohm, Straight cable female
| H+S | |
|---|---|
| Suitable cables | SR_86_TP_M17 |
| Product code | 21_MMCX-50-2-1/111_O |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y3Y16Y11 , Y3 - 2 mm / 50 OhmY16 - 2 mm / 50 OhmY11 - 2 mm / 50 Ohm |
| Standard | HUBER+SUHNER-MMCX |
| Mating cycles | 500 |
| Weight | 0.0007 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | MMCX |
| Gender | jack |
| Operation temperature | -55 °C ... 155 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / Gold Plating (without Nickel underplating) |
| Interface frequency | 6 GHz |
| Body | Brass / Gold Plating (without Nickel underplating) |
| Cable entry centre contact | crimped |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
