21_MCX-50-2-13/133_NH

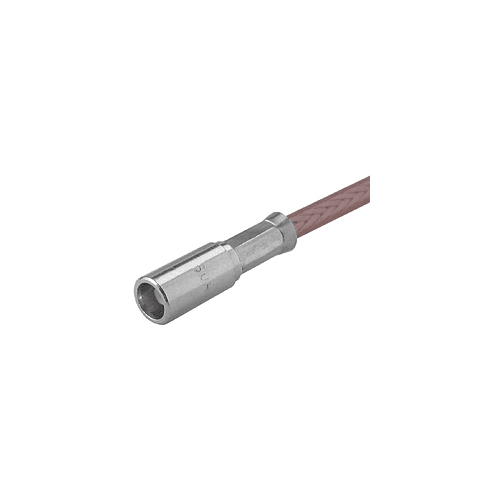

Coaxial connector
MCX, 50 Ohm, Straight cable female
| H+S | |
|---|---|
| Suitable cables | RG_316_/U |
| Product code | 21_MCX-50-2-13/133_N |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Available as assembly only | No |
| Details | CAS: 7439-92-1 Lead |
| Cable group | U2 , U2 - 2 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Additional cables | RG_174_/U |
| Standard | IEC 60169-36_CECC 22220 |
| Mating cycles | 500 |
| Weight | 0.0013 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Interface type | MCX |
| Gender | jack |
| Operation temperature | -55 °C ... 155 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Interface frequency | 6 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | crimped |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
