| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
V1 |
| Cable Retention Force |
110 N |
| Cable1 |
RG_108_A/U |
| Centre Contact Material |
Copper Beryllium / Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |

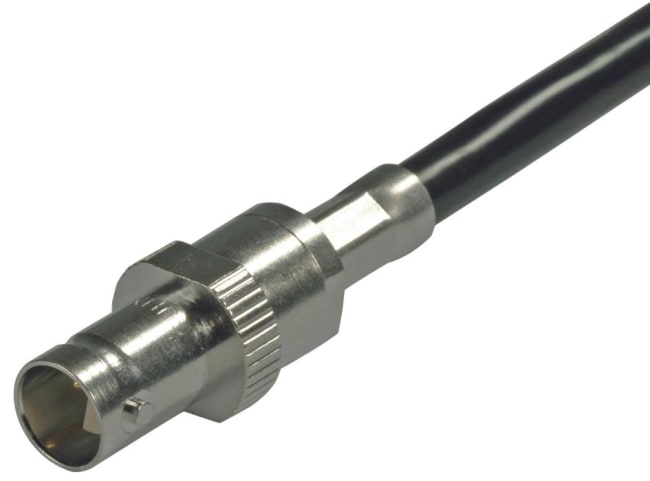

| Connector Description |
Straight cable jack |
| CONNECTOR SERIES |
BNO |
| Coupling Nut Material |
Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
4 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
jack |
| Highlight1 |
SUHNER full crimp cable attachement |
| ID |
21_BNO-0-4-1/133_N |
| Impedance |
not defined |
| Insulator Material |
ETFE (Ethylene tetrafluoroethylene) |
| Interface Frequency max. |
0.2 GHz |
| Interface Standards |
IEC 60169-22 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
125 °C |
| Operating Temperature min. |
-50 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
21 |
| Weight |
0.0161 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
21_BNO-0-4-1/133_NE |
| OBJECT_ID |
1600247 |
