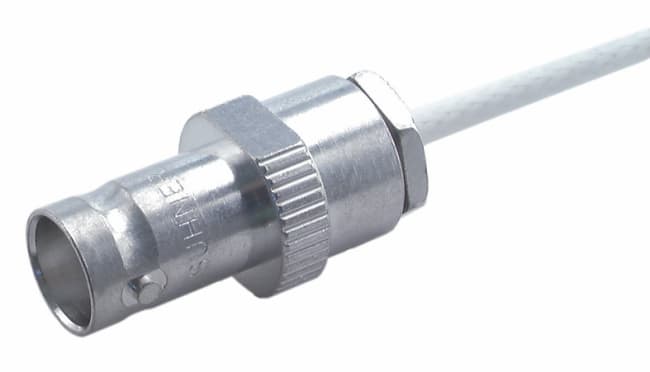

21 BNC-50-2-1/133NE
Coaxial connector
|BNC, 50 Ohm, Straight cable female
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | clamped |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U2 |
Cable Group2 | X3 |
Cable Retention Force | 125N |
Cable1 | RG_316_/U |
Cable2 | ENVIROFLEX_316 |
Cable3 | RG_188_A/U |
Cable5 | RG_174_/U |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable jack |
CONNECTOR SERIES | BNC |
Dielectric Size | 2mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
ID | 21_BNC-50-2-1/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 4GHz |
Interface Standards | IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 21 |
Weight | 0.0159kg |
CONNECTOR SHAPE | straight |
Type Number | 21_BNC-50-2-1/133_NE |
OBJECT_ID | 4648416 |
