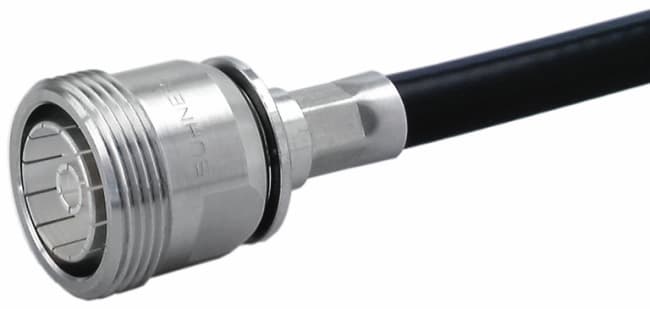

21 716-50-7-2/003 E (RG 214)
Cable Entry Centre Contact | crimped |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U32 |
Cable Group2 | U43 |
Cable1 | RG_214_/U |
Cable2 | GX_07272_D |
Cable5 | RADOX_RF_214 |
Centre Contact Material | Bronze / Brass |
Centre Contact Plating | Silver Plating |
Connector Description | Straight cable jack |
CONNECTOR SERIES | 7/16 |
Crimp Ferrule Material | Brass |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 7 mm |
Gasket Material | NR (Natural Rubber) |
Gender | jack |
Highlight1 | SUHNER full crimp cable attachement |
ID | 21_716-50-7-2/003_- |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 7.5 GHz |
Interface Standards | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Outer Contact Material | Bronze |
Outer Contact Plating | Silver Plating |
Packaging | Single |
PATTERN CLASSES | 21 |
Weight | 0.0891 kg |
CONNECTOR SHAPE | straight |
Type Number | 21_716-50-7-2/003_-E |
OBJECT_ID | 5243441 |
