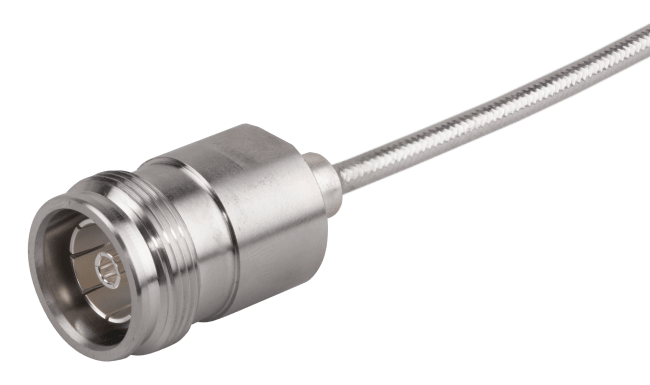

21_4310-50-3-1/003_-Y
Coaxial connector
4.3-10, 50 Ohm, Straight cable female
| H+S | |
|---|---|
| Suitable cables | SUCOFORM_141 |
| Product code | 21_4310-50-3-1/003_- |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Copper Beryllium / Brass / Silver Plating |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y5Y17Y12 , Y5 - 3 mm / 50 OhmY17 - 3 mm / 50 OhmY12 - 3 mm / 50 Ohm |
| Standard | IEC 61169-54 |
| Other body part | Brass / Silver Plating |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | 4.3-10 |
| Gender | jack |
| Operation temperature | -55 °C ... 90 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Bronze / Silver Plating |
| Interface frequency | 12 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
