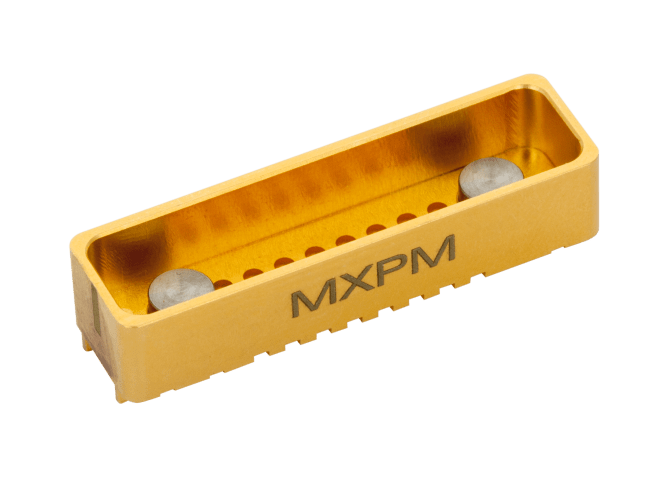

1x8A_82_MXPM-S50-0-1/-11_NE
Coaxial connector
MXPM, 50 Ohm, Straight PCB female
| H+S | |
|---|---|
| Details | CAS: 7439-92-1 Lead |
| Board mounting type | pin-in-hole / SMT |
| Number of printlegs | others |
| Standard | HUBER+SUHNER MXPM STD (Patent US 8,360,807 / Patent pend.) |
| Other body part | Stainless steel |
| Mating cycles | 500 |
| Product code | 1x8A_82_MXPM-S50-0-1 |
| Height above PCB HA | 8 mm |
| Weight | 0.0098 kg |
| Exemptions | 6c |
| Interface frequency | 90 GHz |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Interface type | MXPM |
| Gender | jack |
| Rating | Contains one or more SVHC >0,1% , Compliant with exemption |
| Operation temperature | 0 °C ... 85 °C |
| Body | Brass / SUCOPRO / Gold Plating |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
| Outer conductor | Brass / SUCOPRO / Gold Plating |
