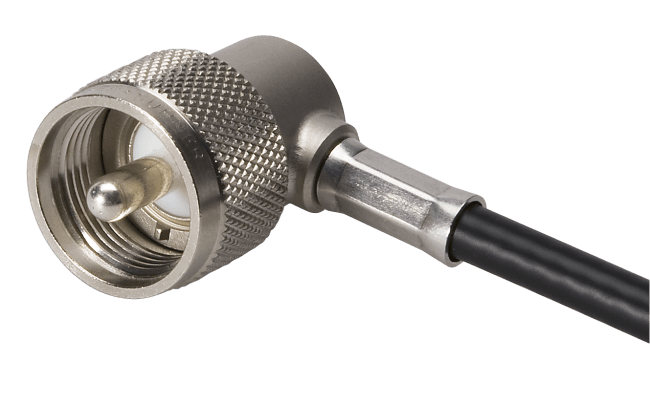

16 UHF-0-3-4/023 E (RG_58)
Coaxial connector
|UHF, X Ohm, Right angle cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | Nickel Plating |
| Cable Group Connectors | U7 |
| Cable Retention Force | 125N |
| Cable1 | RG_58_C/U |
| Cable2 | G_03232 |
| Cable3 | GX_03272 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Silver Plating |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | UHF |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | Nickel Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Gender | plug |
| ID | 16_UHF-0-3-4/023_ |
| Impedance | other |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 0.2GHz |
| Interface Standards | IEC 60169-12 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | Nickel Plating |
| Packaging | Single |
| PATTERN CLASSES | 16 |
| Weight | 0.0319kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_UHF-0-3-4/023_-E |
| OBJECT_ID | 4921935 |
