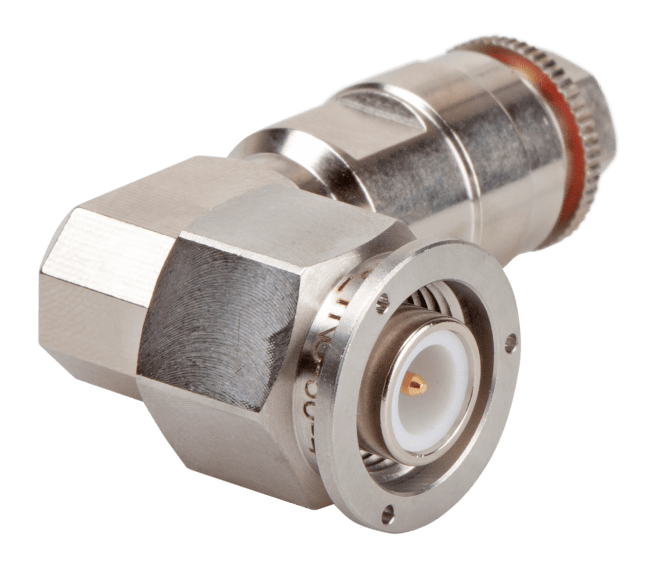

16_TNC-50-6-12/12-_NE
Coaxial connector
TNC, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Interface type | TNC |
| Operation temperature | -60 °C ... 165 °C |
| Suitable cables | EACON_6C |
| Coupling nut | Stainless Steel / Passivated (Plating) |
| Outer conductor | Brass / Nickel Plating |
| Product code | 16_TNC-50-6-12/12-_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Interface frequency | 11 GHz |
| Ingress protection (IP Rating) | Mated / IP67 |
| Available as assembly only | No |
| Cable group | U96 , U96 - EACON_6C |
| Body | Brass / Nickel Plating |
| Cable entry centre contact | plugged |
| Standard | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Other body part | Stainless Steel / Passivated (Plating) |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Cable entry outer contact | clamped |
| Gender | plug |
