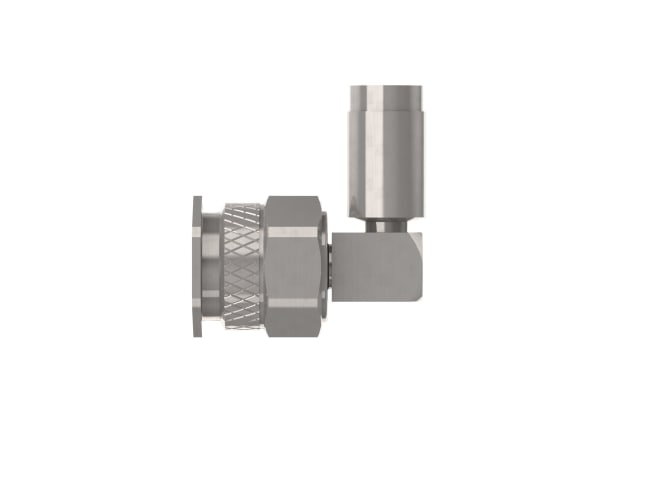

16 TNC-50-3-24/133NE
Coaxial connector
TNC, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Interface type | TNC |
| Operation temperature | -65 °C ... 165 °C |
| Suitable cables | MULTIFLEX_141 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 16_TNC-50-3-24/13-_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PFA / PTFE |
| Centre contact | Brass / SUCOPRO Plating |
| Interface frequency | 11 GHz |
| Available as assembly only | No |
| Cable group | Y5Y12 , Y5 - 3 mm / 50 OhmY12 - 3 mm / 50 Ohm |
| Body | Brass / SUCOPRO Plating |
| Cable entry centre contact | soldered |
| Standard | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.0184 kg |
| Cable entry outer contact | soldered |
| Gender | plug |
