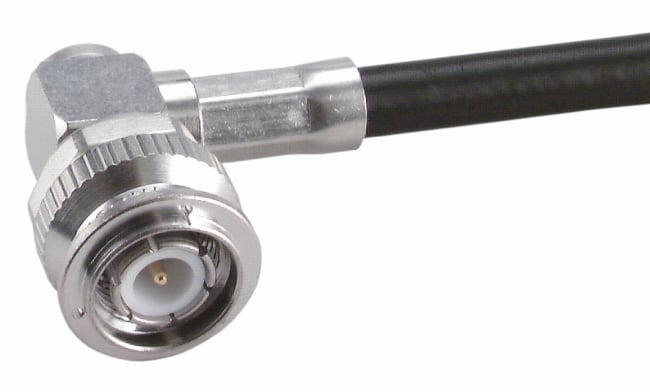

16 TNC-50-3-112/133NE
Frequency min. Range2 | 2.5GHz |
VSWR Range 2 | 1.1 |
Return Loss Range2 | 27dB |
External Remarks | El. optimized for cable RG_58_C/U |
Highlight2 | Excellent return loss performance |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 5GHz |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U7 |
Cable Retention Force | 260N |
Cable1 | RG_58_C/U |
Cable2 | G_03232 |
Cable3 | GX_03272 |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Right angle cable plug |
CONNECTOR SERIES | TNC |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Crimp Ferrule Material | Copper |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Frequency max. Range1 | 2.5GHz |
Frequency min. Range1 | 0GHz |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
Highlight1 | El. Optimized for cable RG 58 C/U |
ID | 16_TNC-50-3-112/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 11GHz |
Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 16 |
Return Loss Range1 | 32dB |
Weight | 0.0216kg |
CONNECTOR SHAPE | right-angle |
Type Number | 16_TNC-50-3-112/133_NE |
VSWR Range 1 | 1.05 |
OBJECT_ID | 2507373 |
