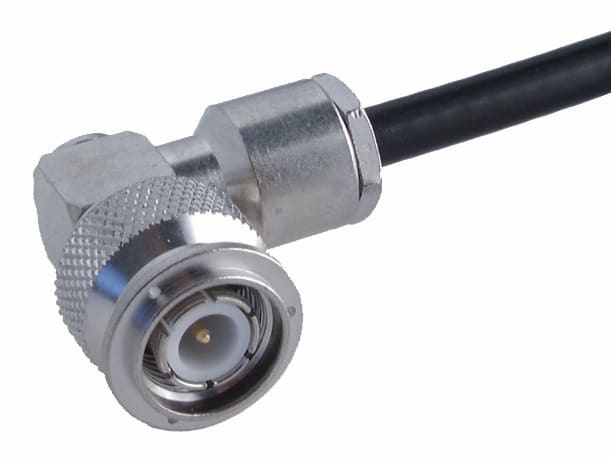

16_TNC-50-2-10/133_NE
Coaxial connector
|TNC, 50 Ohm, Right angle cable male
| Frequency min. Range3 | 3GHz |
| Frequency min. Range2 | 2GHz |
| VSWR Range 3 | 1.22 |
| VSWR Range 2 | 1.1 |
| Return Loss Range2 | 26dB |
| Return Loss Range3 | 20dB |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 3GHz |
| Frequency max. Range3 | 4GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U2 |
| Cable Group2 | X3 |
| Cable1 | RG_316_/U |
| Cable2 | RG_188_A/U |
| Cable3 | RG_174_/U |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | TNC |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Frequency max. Range1 | 2GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 16_TNC-50-2-10/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 16 |
| Return Loss Range1 | 29dB |
| Weight | 0.0297kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_TNC-50-2-10/133_NE |
| VSWR Range 1 | 1.07 |
| OBJECT_ID | 3029385 |
