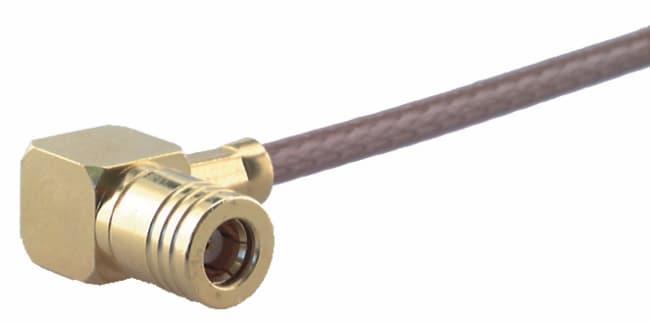

16 SMB-50-2-51/133 NH
Coaxial connector
|SMB, 50 Ohm, Right angle cable female
| Engangement Force min. | 8N |
| Engangement Force max. | 63N |
| Disengagement Force max. | 63N |
| Disengagement Force min. | 8N |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U4 |
| Cable Retention Force | 50N |
| Cable1 | K_02252_D |
| Cable2 | ENVIROFLEX_316_D |
| Cable3 | G_02232_D |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | SMB |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Gender | plug |
| ID | 16_SMB-50-2-51/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 4GHz |
| Interface Standards | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 16 |
| Weight | 0.0038kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_SMB-50-2-51/133_NH |
| OBJECT_ID | 4312670 |
