Engangement Force min. |
8 N |
Engangement Force max. |
63 N |
Disengagement Force max. |
63 N |
Disengagement Force min. |
8 N |
Cable Entry Centre Contact |
soldered |
Cable Entry Outer Contact |
crimped |
Class |
1037 |
Body Material |
Brass |
Body Plating |
Gold Plating (Nickel underplated) |
Cable Group |
U4 |
Cable Retention Force |
50 N |
Cable1 |
K_02252_D |
Cable2 |
ENVIROFLEX_316_D |
Cable3 |
G_02232_D |
Centre Contact Material |
Copper Beryllium Alloy |
Centre Contact Plating |
Gold Plating (Nickel underplated) |
Connector Description |

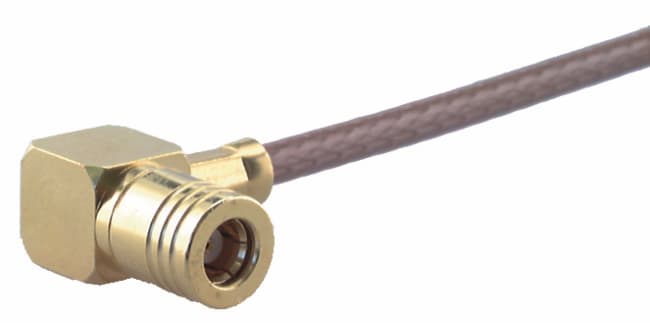

Right angle cable plug |
CONNECTOR SERIES |
SMB |
Crimp Ferrule Material |
Copper |
Crimp Ferrule Plating |
Gold Plating (without Nickel underplating) |
Dielectric Size |
2 mm |
Frequency max. Range1 |
4 GHz |
Frequency min. Range1 |
N GHz |
Gender |
plug |
ID |
16_SMB-50-2-51/111_N |
Impedance |
50 |
Insulator Material |
PFA / PTFE |
Interface Frequency max. |
4 GHz |
Interface Standards |
IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
Junction |
cable |
2011/65/EC (RoHS) |
compliant |
Mounting |
none |
Number of Matings |
500 |
Operating Temperature max. |
165 °C |
Operating Temperature min. |
-65 °C |
Outer Contact Material |
Brass |
Outer Contact Plating |
Gold Plating (Nickel underplated) |
Packaging |
Bulk 100 pcs |
PATTERN CLASSES |
16 |
Return Loss Range1 |
22 dB |
Weight |
0.0038 kg |
CONNECTOR SHAPE |
right-angle |
Type Number |
16_SMB-50-2-51/111_NH |
OBJECT_ID |
3019092 |
