16 SMB-50-2-51/111NE

Produktnummer: 22648058
Huber Suhner
Lagerbeholdning:

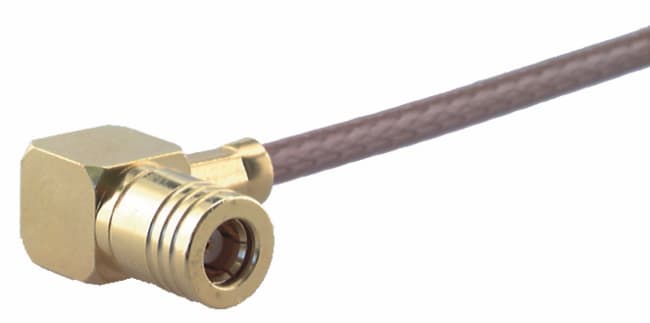

Coaxial connector
|SMB, 50 Ohm, Right angle cable female

Engangement Force min. 8N
Engangement Force max. 63N
Disengagement Force max. 63N
Disengagement Force min. 8N
Cable Entry Centre Contact soldered
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating Gold Plating (Nickel underplated)
Cable Group Connectors U4
Cable Retention Force 50N
Cable1 K_02252_D
Cable2 ENVIROFLEX_316_D
Cable3 G_02232_D
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Right angle cable plug
CONNECTOR SERIES SMB
Crimp Ferrule Material Copper
Crimp Ferrule Plating Gold Plating (without Nickel underplating)
Dielectric Size 2mm
Frequency max. Range1 4GHz
Frequency min. Range1 0GHz
Gender plug
ID 16_SMB-50-2-51/111_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 4GHz
Interface Standards IEC 60169-10_MIL-STD-348A/311_CECC 22130
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Single
PATTERN CLASSES 16
Return Loss Range1 22dB
Weight 0.0038kg
CONNECTOR SHAPE right-angle
Type Number 16_SMB-50-2-51/111_NE
OBJECT_ID 3019092
