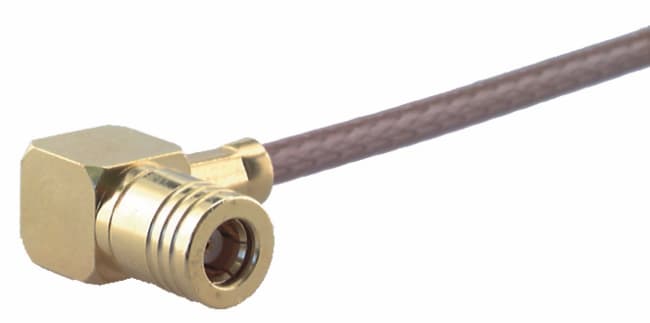

16 SMB-50-2-41/111NH
Coaxial connector
SMB, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Interface type | SMB |
| Operation temperature | -65 °C ... 165 °C |
| Suitable cables | K_02252_D |
| Outer conductor | Brass / Gold Plating (Nickel underplated) |
| Product code | 16_SMB-50-2-41/111_N |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Interface frequency | 4 GHz |
| Available as assembly only | No |
| Cable group | U4 , U4 - 2 mm / 50 Ohm |
| Crimp ferrule | Copper / Gold Plating (without Nickel underplating) |
| Body | Brass / Gold Plating (Nickel underplated) |
| Cable entry centre contact | crimped |
| Standard | IEC 60169-10_MIL-STD-348A/311_CECC 22130 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.0039 kg |
| Cable entry outer contact | crimped |
| Gender | plug |
