16_SMA-50-3-65/133_NE
Coaxial connector

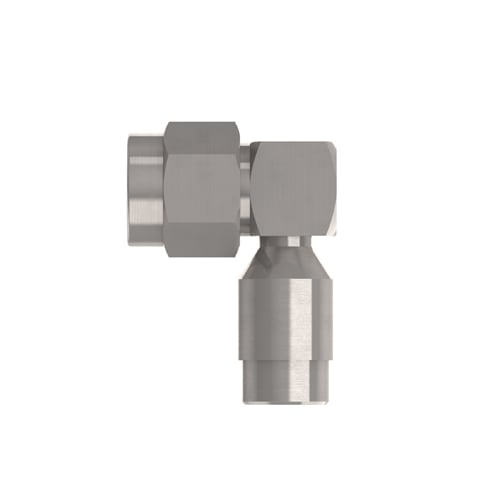

|SMA, 50 Ohm, Right angle cable male
Frequency min. Range3 | 4GHz |
Frequency min. Range2 | 2GHz |
VSWR Range 3 | 1.135 |
VSWR Range 2 | 1.065 |
Return Loss Range2 | 30dB |
Return Loss Range3 | 24dB |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 4GHz |
Frequency max. Range3 | 6GHz |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | X27 |
Cable Group2 | X38 |
Cable1 | SPUMA_195 |
Centre Contact Material | Brass |
Centre Contact Plating | SUCOPRO Plating |
Connector Description | Right angle cable plug |
CONNECTOR SERIES | SMA |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Crimp Ferrule Material | Copper |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Frequency max. Range1 | 2GHz |
Frequency min. Range1 | 0.1GHz |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
ID | 16_SMA-50-3-65/133_N |
Impedance | 50 |
Insulator Material | PTFE (Polytetrafluoroethylene) |
Interface Frequency max. | 18GHz |
Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 16 |
Return Loss Range1 | 32.5dB |
Weight | 0.0161kg |
CONNECTOR SHAPE | right-angle |
Type Number | 16_SMA-50-3-65/133_NE |
VSWR Range 1 | 1.049 |
OBJECT_ID | 7701471 |
