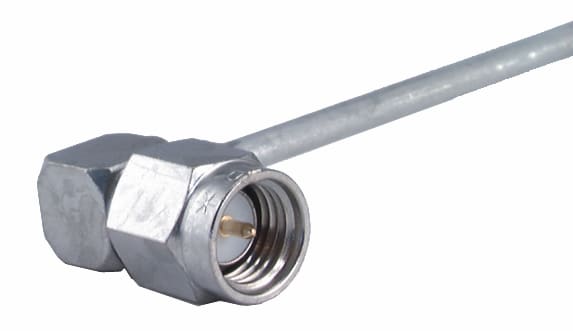

16 SMA-50-3-43/133NE
| Cable Group3 | Y17 |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | Y5 |
| Cable Group2 | Y12 |
| Cable Retention Force | 125 N |
| Cable1 | EZ_141_TP_M17 |
| Cable2 | SUCOFORM_141 |
| Cable3 | MULTIFLEX_141 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | SMA |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3 mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 16_SMA-50-3-43/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18 GHz |
| Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 16 |
| Weight | 0.0041 kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_SMA-50-3-43/133_NE |
| OBJECT_ID | 2468527 |
