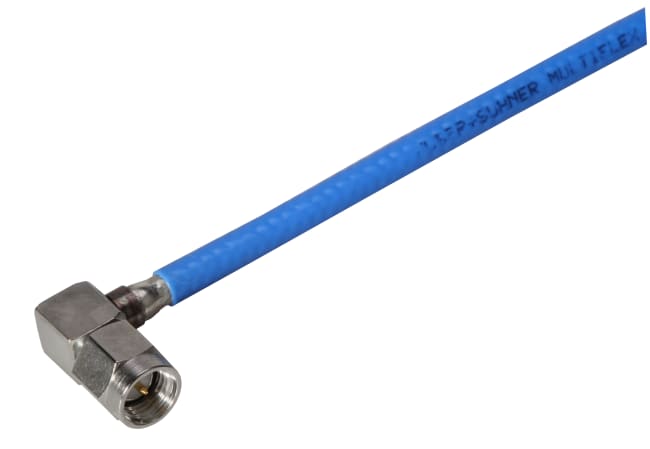

16_SMA-50-3-13/133_NP
Coaxial connector
SMA, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Suitable cables | SUCOFORM_141 |
| Product code | 16_SMA-50-3-13/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Brass / SUCOPRO Plating |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y5Y17Y12 , Y5 - 3 mm / 50 OhmY17 - 3 mm / 50 OhmY12 - 3 mm / 50 Ohm |
| Standard | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Mating cycles | 500 |
| Weight | 0.0042 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | SMA |
| Gender | plug |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Interface frequency | 18 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
