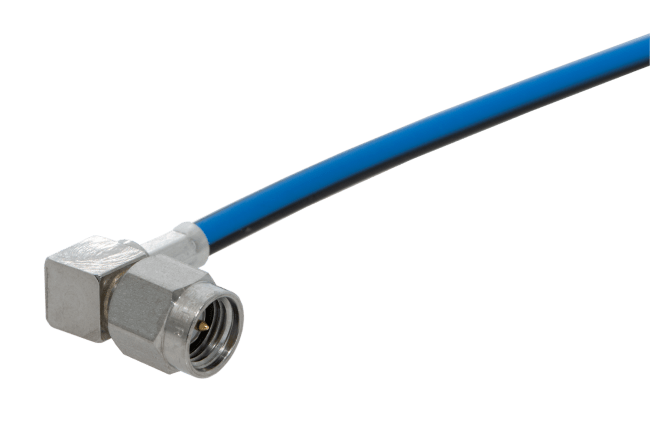

16 SMA-50-2-56/199NE

Produktnummer: 22642662
Huber Suhner
Lagerbeholdning:

Cable Entry Centre Contact soldered
Cable Entry Outer Contact crimped
Class 1037
Body Material Stainless Steel
Cable Group U4
Cable Retention Force 105 N
Cable1 K_02252_D
Cable2 ENVIROFLEX_316_D
Cable3 G_02232_D
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Right angle cable plug
CONNECTOR SERIES SMA
Coupling Nut Material Stainless Steel
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 2 mm
Gasket Material VMQ (Silicone rubber)
Gender plug
ID 16_SMA-50-2-56/199_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 18 GHz
Interface Standards IEC 60169-15_MIL-STD-348A/310_CECC 22110
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Stainless Steel
Packaging Single
PATTERN CLASSES 16
Weight 0.0042 kg
CONNECTOR SHAPE right-angle
Type Number 16_SMA-50-2-56/199_NE
OBJECT_ID 8317585
