| Cable Group3 |
U41 |
| Frequency min. Range2 |
2 GHz |
| Cable6 |
RADOX_RF_400 |
| VSWR Range 2 |
1.22 |
| Return Loss Range2 |
20 dB |
| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Frequency max. Range2 |
6 GHz |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U9 |
| Cable Group2 |
U11 |
| Cable Retention Force |
257 N |
| Cable1 |
ENVIROFLEX_400 |
| Cable2 |
RG_400_/U |
| Cable3 |
ENVIROFLEX_142 |
| Cable5 |
RADOX_RF_142 |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
SUCOPRO Plating |
| Connector Description |

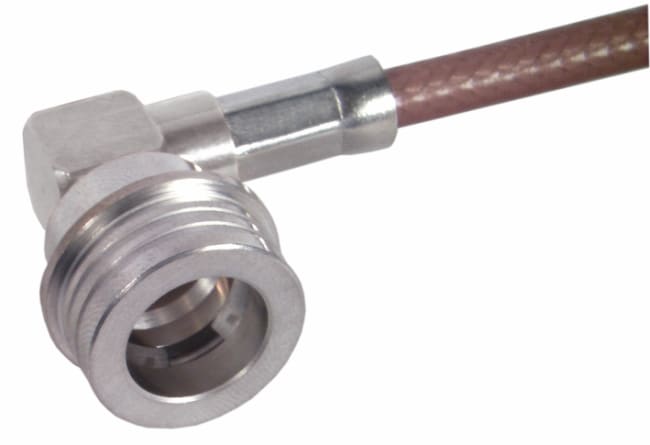

Right angle cable plug |
| CONNECTOR SERIES |
QN |
| Coupling Nut Material |
Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
3 mm |
| Frequency max. Range1 |
2 GHz |
| Frequency min. Range1 |
N GHz |
| Gasket Material |
EPDM (Ethylene propylene diene rubber) |
| Gender |
plug |
| Highlight1 |
QuickLock Interface |
| ID |
16_QN-50-3-1/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
QN QLF compliant |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
100 |
| Operating Temperature max. |
125 °C |
| Operating Temperature min. |
-40 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
16 |
| Return Loss Range1 |
23 dB |
| Weight |
0.0218 kg |
| CONNECTOR SHAPE |
right-angle |
| Type Number |
16_QN-50-3-1/133_NE |
| VSWR Range 1 |
1.15 |
| OBJECT_ID |
5242388 |
