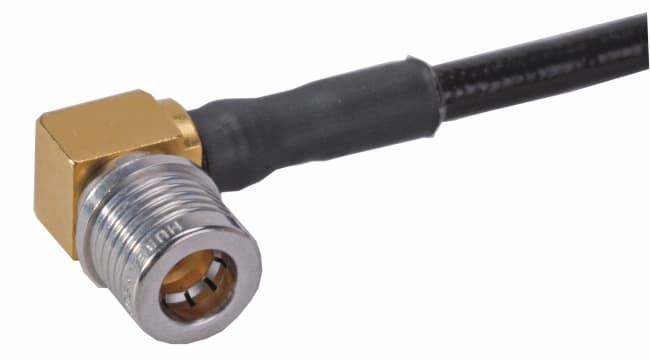

Coaxial connector
|QMA, 50 Ohm, Right angle cable male
Frequency min. Range3 | 3GHz |
Frequency min. Range2 | 2GHz |
VSWR Range 3 | 1.12 |
VSWR Range 2 | 1.08 |
Return Loss Range2 | 28dB |
Return Loss Range3 | 25dB |
Highlight2 | Ingress protection according to IP68 |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 3GHz |
Frequency max. Range3 | 6GHz |
Body Plating | SUCOPRO Plating |
Cable Group Connectors | Y17 |
Cable Group2 | Y12 |
Cable1 | MULTIFLEX_141 |
Cable2 | SUCOFORM_141 |
Centre Contact Material | Brass |
Centre Contact Plating | SUCOPRO Plating |
Connector Description | Right angle cable plug |
CONNECTOR SERIES | QMA |
Dielectric Size | 3mm |
Frequency max. Range1 | 2GHz |
Frequency min. Range1 | 0GHz |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
Highlight1 | QuickLock Interface |
ID | 16_QMA-W50-3-5/113_N |
Impedance | 50 |
Insulator Material | PTFE (Polytetrafluoroethylene) |
Interface Frequency max. | 18GHz |
Interface Standards | QMA IP 68 rated - QLF compliant |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 100 |
Operating Temperature max. | 105°C |
Operating Temperature min. | -40°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPRO Plating |
Packaging | Single |
PATTERN CLASSES | 16 |
Return Loss Range1 | 32dB |
Weight | 0.0075kg |
CONNECTOR SHAPE | right-angle |
Type Number | 16_QMA-W50-3-5/113_NE |
VSWR Range 1 | 1.05 |
OBJECT_ID | 7328583 |
