16_N-50-12-12/033_-E

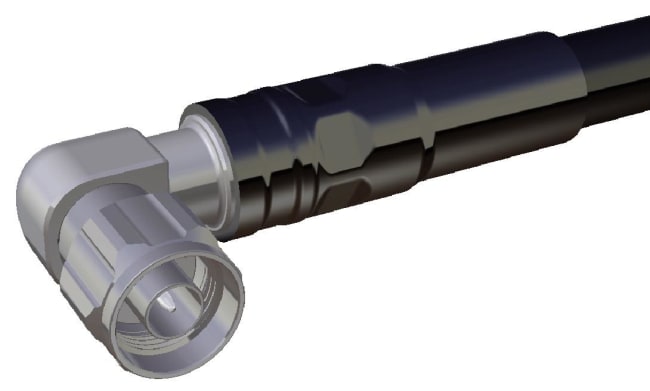

Coaxial connector
|N, 50 Ohm, Right angle cable male
| Frequency min. Range3 | 4GHz |
| Frequency min. Range2 | 2GHz |
| VSWR Range 3 | 1.058 |
| VSWR Range 2 | 1.053 |
| Return Loss Range2 | 31.8dB |
| Return Loss Range3 | 31dB |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 4GHz |
| Frequency max. Range3 | 6GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | X29 |
| Cable1 | SPUMA_600 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Silver Plating |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | false |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Brass |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 12mm |
| Frequency max. Range1 | 2GHz |
| Frequency min. Range1 | 0.1GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 16_N-50-12-12/033_- |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| PATTERN CLASSES | 16 |
| Return Loss Range1 | 34dB |
| Weight | 0.082407kg |
| CONNECTOR SHAPE | straight |
| VSWR Range 1 | 1.041 |
| OBJECT_ID | 7701477 |
