| Engangement Force max. |
25 N |
| Disengagement Force max. |
20 N |
| Disengagement Force min. |
8 N |
| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U2 |
| Cable Retention Force |
54 N |
| Cable1 |
ENVIROFLEX_316 |
| Cable2 |
RG_316_/U |
| Cable3 |
RG_188_A/U |
| Cable5 |
RG_174_/U |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |

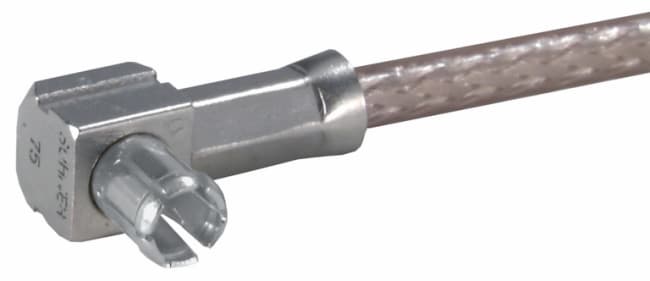

| Connector Description |
Right angle cable plug |
| CONNECTOR SERIES |
MCX |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
2 mm |
| Gender |
plug |
| ID |
16_MCX-50-2-14/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
6 GHz |
| Interface Standards |
IEC 60169-36_CECC 22220 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
155 °C |
| Operating Temperature min. |
-55 °C |
| Outer Contact Material |
Copper Beryllium Alloy |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
16 |
| Weight |
0.0012 kg |
| CONNECTOR SHAPE |
right-angle |
| Type Number |
16_MCX-50-2-14/133_NE |
| OBJECT_ID |
4650841 |
