16 MCX-50-2-11/111 NH

Produktnummer: 23000457
Huber Suhner
Lagerbeholdning:

Engangement Force max. 25 N
Disengagement Force max. 20 N
Disengagement Force min. 8 N
Cable Entry Centre Contact soldered
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating Gold Plating (Nickel underplated)
Cable Group U4
Cable Retention Force 108 N
Cable1 K_02252_D
Cable2 ENVIROFLEX_316_D
Cable3 G_02232_D
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)

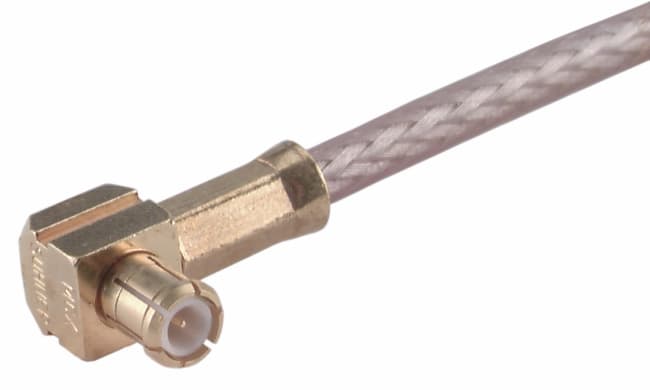

Connector Description Right angle cable plug
CONNECTOR SERIES MCX
Crimp Ferrule Material Copper
Crimp Ferrule Plating Gold Plating (without Nickel underplating)
Dielectric Size 2 mm
Gender plug
ID 16_MCX-50-2-11/111_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 6 GHz
Interface Standards IEC 60169-36_CECC 22220
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Copper Beryllium Alloy
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Bulk 100 pcs
PATTERN CLASSES 16
Weight 0.0011 kg
CONNECTOR SHAPE right-angle
Type Number 16_MCX-50-2-11/111_NH
OBJECT_ID 3756471
