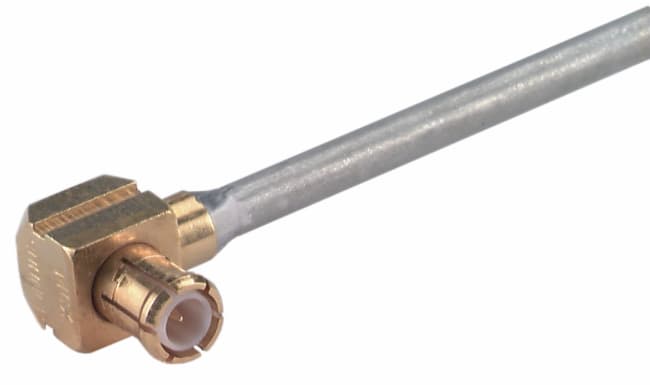

16_MCX-50-2-104/111_NH-1
Coaxial connector
MCX, 50 Ohm, Right angle cable male
| H+S | |
|---|---|
| Suitable cables | SR_86_TP_M17 |
| Product code | 16_MCX-50-2-104/111_NH-1 |
| Insulator | PFA / PTFE |
| Centre contact | Brass / Gold Plating (Nickel underplated) |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y3 , Y3 - 2 mm / 50 Ohm |
| Standard | IEC 60169-36_CECC 22220 |
| Mating cycles | 500 |
| Weight | 0.0008 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | MCX |
| Gender | plug |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Copper Beryllium Alloy / SUCOPRO Plating |
| Interface frequency | 6 GHz |
| Body | Brass / SUCOPRO Plating |
| Cable entry centre contact | soldered |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
