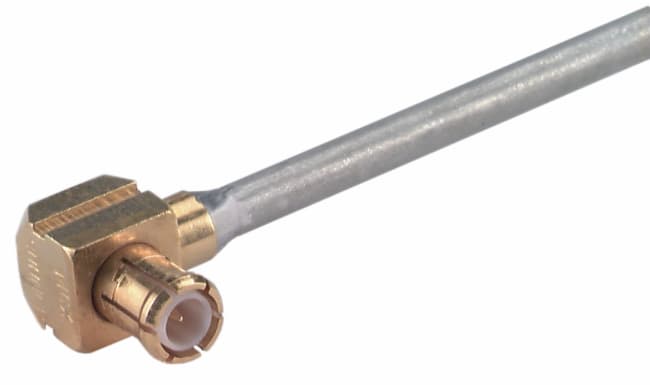

16_MCX-50-1-11/111_NH
Coaxial connector
|MCX, 50 Ohm, Right angle cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPRO Plating |
| Cable Group Connectors | Y2 |
| Cable Group2 | Y15 |
| Cable1 | EZ_47_TP_M17 |
| Cable2 | SUCOFORM_47_CU |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle cable plug |
| CONNECTOR SERIES | MCX |
| Dielectric Size | 1mm |
| Gender | plug |
| Highlight1 | Low profile / space saving |
| ID | 16_MCX-50-1-11/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | IEC 60169-36_CECC 22220 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 16 |
| Weight | 0.000773kg |
| CONNECTOR SHAPE | right-angle |
| Type Number | 16_MCX-50-1-11/111_NH |
| OBJECT_ID | 3019113 |
