Produktnummer: 84015387
Huber Suhner

Impact Standard IEC 60794-1-2 E4
Stripping Ripcord for easy jacked removal
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Each fiber strain relieved
Wavelength for singlemode at 1310nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Layer Type Separating tape and 1 ripcord
Temperature Standard IEC 61300-2-22
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Bundle IEC 60332-3-24
Strength Member Type Strength member
Other Properties Cable with improved fire performance
Trademark LSFH
Other Properties2 For Smartline application
Class 1032
Application For direct connector assembly with strain relief
Cable Type Metal free indoor cable

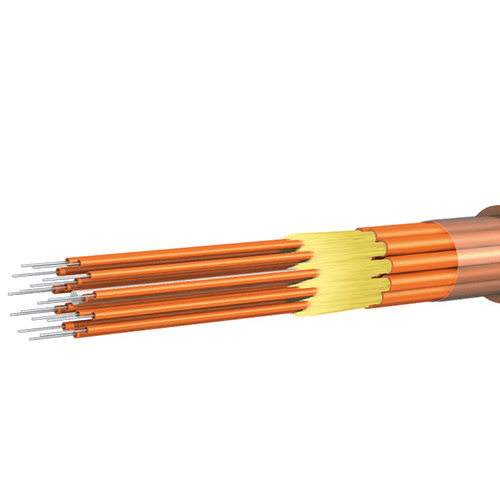

Cable Description Breakout Cable
Outer Jacket Type Outer jacket / PE flame retardant
Outer Jacket Ø 12mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 16
Tube Type Semi-tight tube
Fire behavior Low smoke, halogen free and self-extinguishing

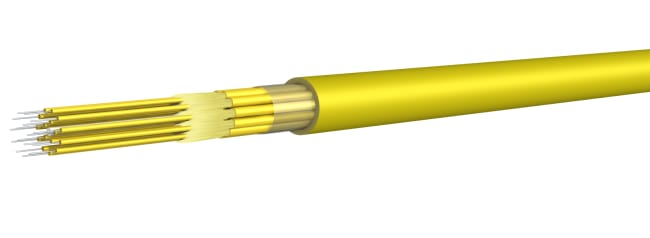

ID 16-.../CWJSNH-...20
